MPS系列产品是四度魔豆科技公司开发的全新一代视觉引导相机。该相机采用全新一代的ISP图像处理和AI识别技术，可以输出关键点的像素坐标、长宽、周长和面积。每帧图像的关键点数量可达15个点，输出帧率可达120fps。

该相机不依赖于可见光，自主使用红外补光，通过对图像中连接区域的几何和拓扑属性进行量化，为各种自动化、检测、测量和控制任务提供了丰富的数据基础。适合于目标定位、姿态估计、尺寸测量、形状识别与分类、缺陷检测、运动追踪和机器人抓取引导等场合。广泛适合于工业自动化，无人机导航，增强现实，自动驾驶，医疗影像等等行业。

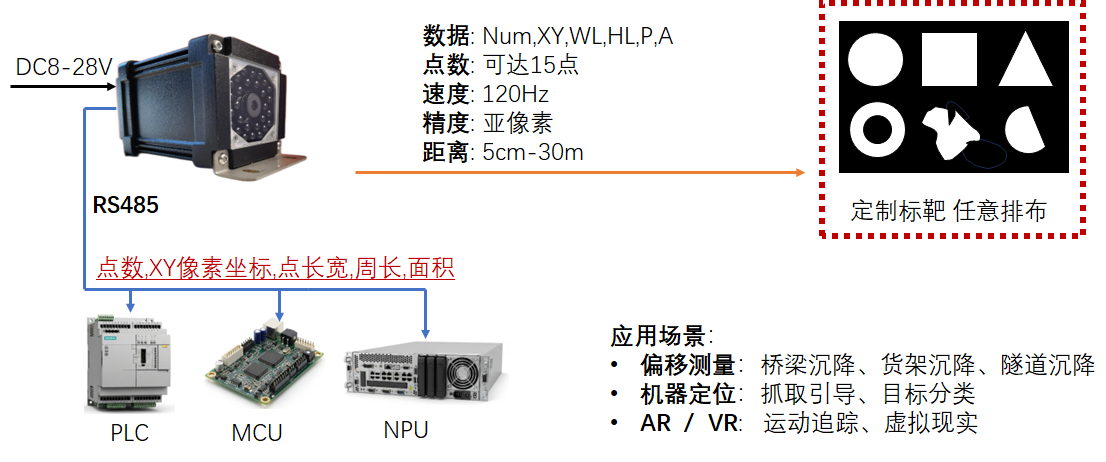

       系统使用结构示意图如下：利用PLC或者其它主控，通过485线连接设备即可获取坐标等信息。

       The MPS series products are a new generation of vision-guided cameras developed by SiduModo Technology. This camera adopts a new generation of ISP (Image Signal Processor) image processing and AI (Artificial Intelligence) recognition technology, capable of outputting the pixel coordinates, length, width, perimeter, and area of key points. The number of key points per image frame can reach up to 15, and the output frame rate can reach 120fps.

This camera does not rely on visible light; instead, it independently uses infrared fill light. By quantifying the geometric and topological attributes of connected regions in an image, it provides a rich data foundation for various automation, inspection, measurement, and control tasks. It is suitable for applications such as target positioning, posture estimation, size measurement, shape recognition and classification, defect detection, motion tracking, and robot grasping guidance. It is widely applicable in industries such as industrial automation, AGV navigation, augmented reality, autonomous driving, medical imaging, and more.

The system's usage structure diagram is as follows: By connecting the device via a 485 line to a PLC or other main controller, coordinate and other information can be obtained.
